Off grid solar inverter charger 12V 50A 1.3KVA 230VAC/50HZ 1KVA with PWM solar charge controller
Energier Apollo is a powerful unit integrated multiple functions, including a high performance
true sine wave inverter, a powerful battery charger, a PWM charge controller, a high speed
automatic transfer switch and function of load management. Its distinguishing surge capability
makes it capable to power most demanding appliances, such as fridge, freezer, water pump etc.
12 V 1000 VA 35 A | 50A 25 VDC
12 V 1300 VA 50 A | 50A 25 VDC
24 V 1600 VA 30 A | 50A 50 VDC
24 V 2000 VA 40 A | 50A 50 VDC
Features.
-All in one unit integrating multiple functions.
-Can be applied for solar hybrid and power backup system.
-TBB premium II multi stage charging algorithm with built in
-automatic temperature & voltage compensation charging.
-Equalization charging program was available for flooded and OPZS battery.
-Lithium Battery charging was available.
-Designed for tropical region.
-Designed to work with weak grid.
-High efficiency up to 93%.
-High performance designed for all kinds of home appliances.
-Extremely low status consumption power.
-Built in AEA
-PWM solar charge controller with built in MC4 terminal.
-ALL-IN-ONE for Solar Hybrid-system
-Compatible with majority of cheap generators in the market.
Acessory (Optional)
RCH
CYBER

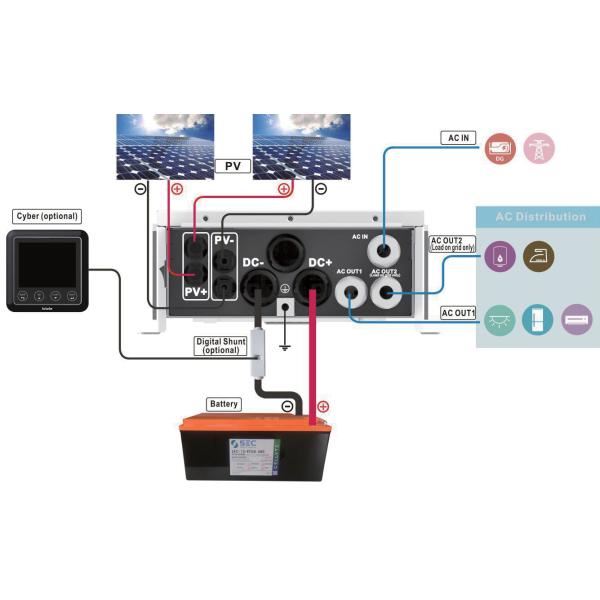

Installation
Through the clock switch, you can configure the battery you are going to connected for a premium charging current. The charging current was set at I=0.15C (15% of the battery capacity you choose) Or
| Position | Battery Capacity |
| 0 | ≤50 |
| 1 | 100 |
| 2 | 200 |
| 3 | 300 |
| 4 | 400 |
| 5 | 500 |
| 6 | 600 |
| 7 | 700 |
| 8 | 800 |
| 9 | ≥900 |
